SUPERVISED WIRELESS CO DETECTOR

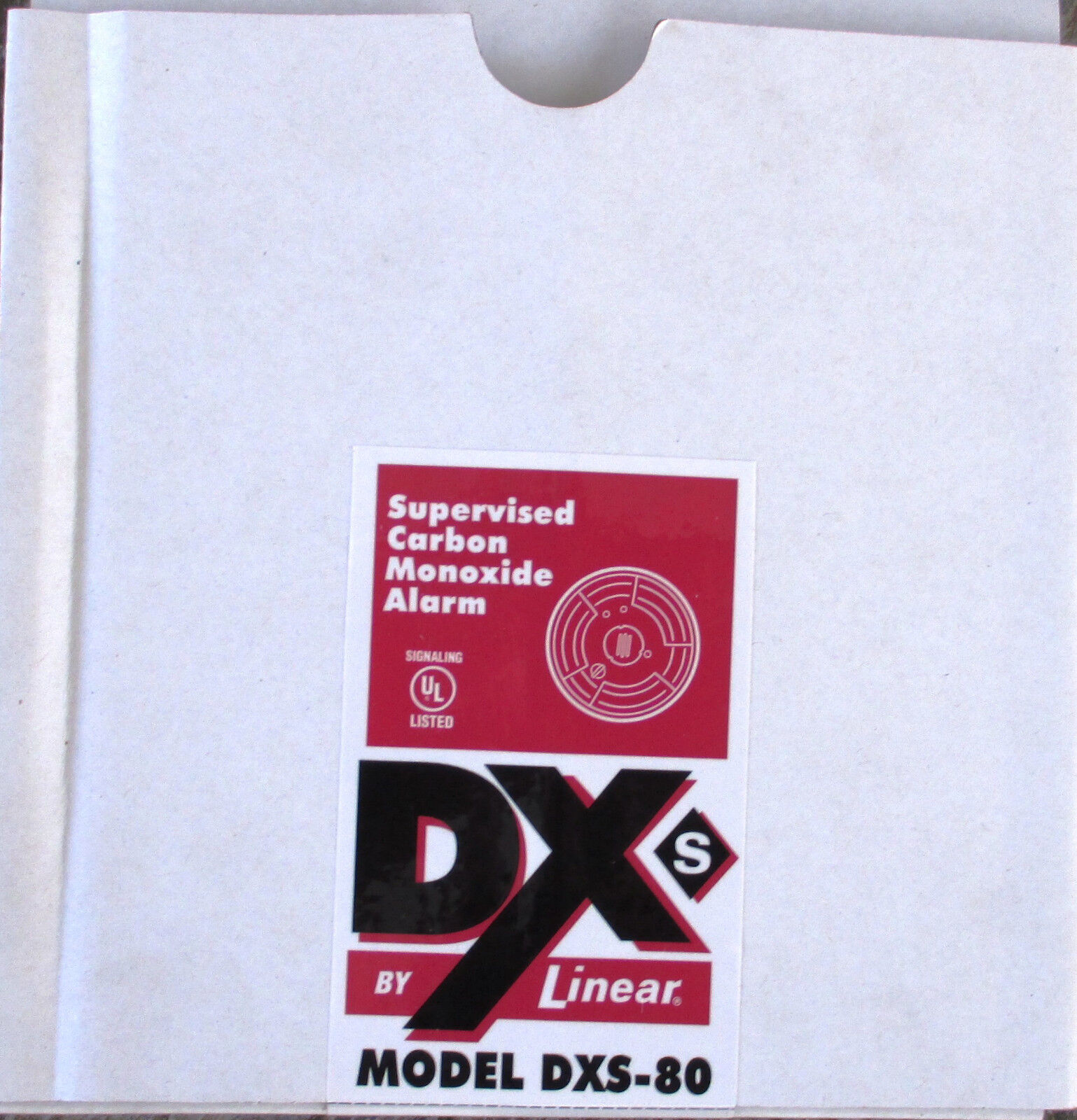

The DXS-80 Supervised Carbon Monoxide Detector Transmitter is a UL
listed †, single station, carbon monoxide alarm with a built-in
supervised transmitter. It is compatible with Linear’s wireless DXS
Format Security Systems, Personal Emergency Reporting Systems (PERS),
and other stand-alone receivers. The DXS-80 provides a warning to alert
against both the acute and chronic effects of carbon monoxide (CO)
When carbon monoxide is detected, the alarm sounds a loud local
alarm. The built-in transmitter sends a digitally coded wireless signal
to its companion receiver every 10 seconds until the air has cleared and
the detector is restored.
The local alarm can be silenced once by pressing the test/reset
button. The transmitter will continue to send an alarm signal every 10
seconds. After 7 minutes, the alarm will sound again if there is still
an unsafe carbon monoxide concentration level. The reset function can be
used only once for each alarm occurrence.
No field coding is required because the DXS-80 is factory set to a unique code; one of over a million possible codes.
The DXS-80 is powered by one 3-volt lithium battery. The battery is
supplied and can power the unit for up to the six year life of the
detector. If the battery voltage drops below a preset level the alarm
will sound a low battery chirp every 45 seconds and a low battery signal
will be sent to the receiver.
